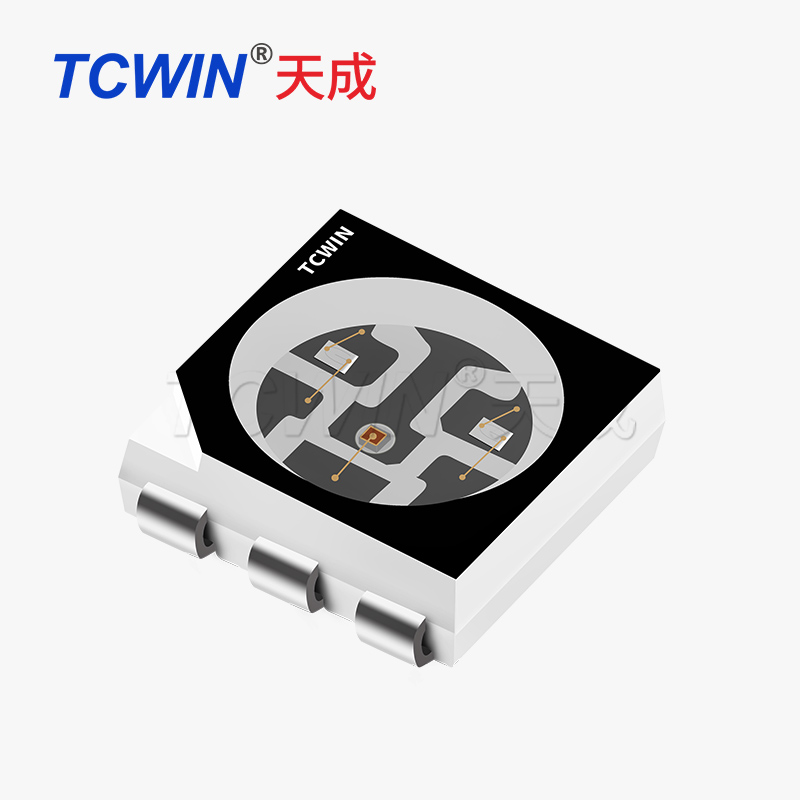

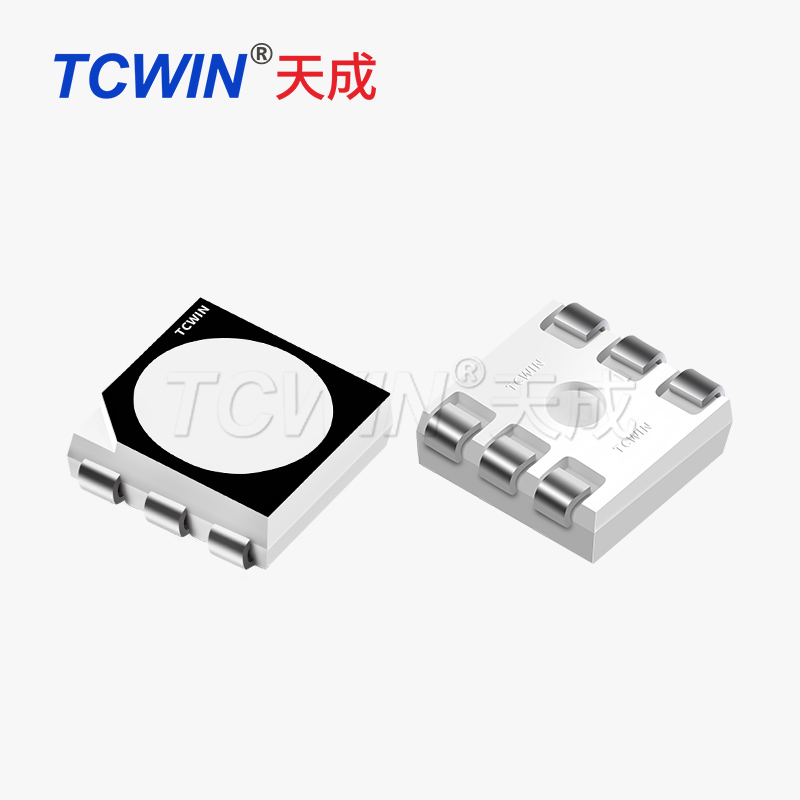

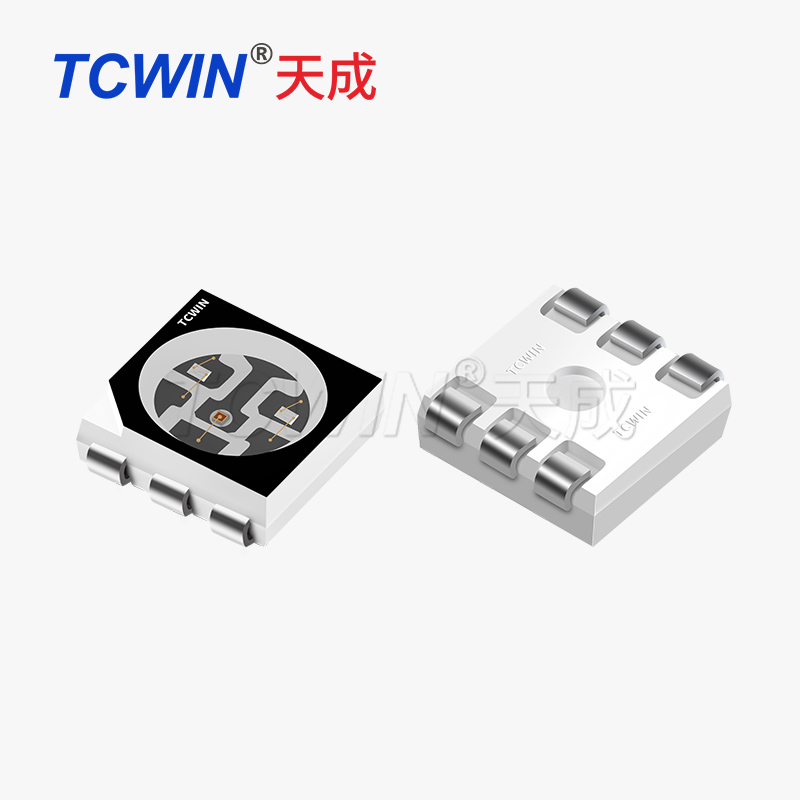

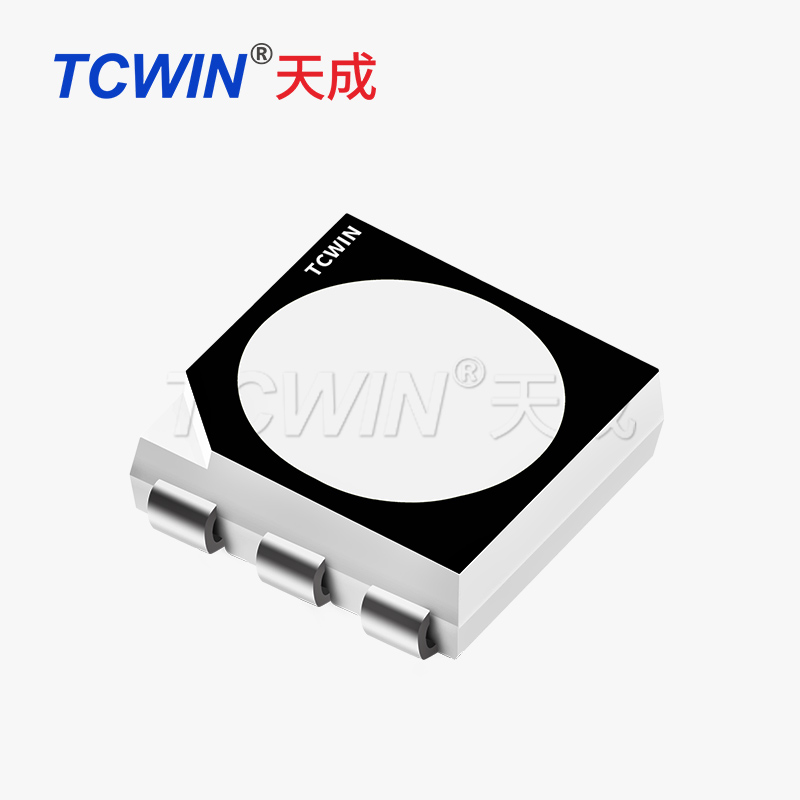

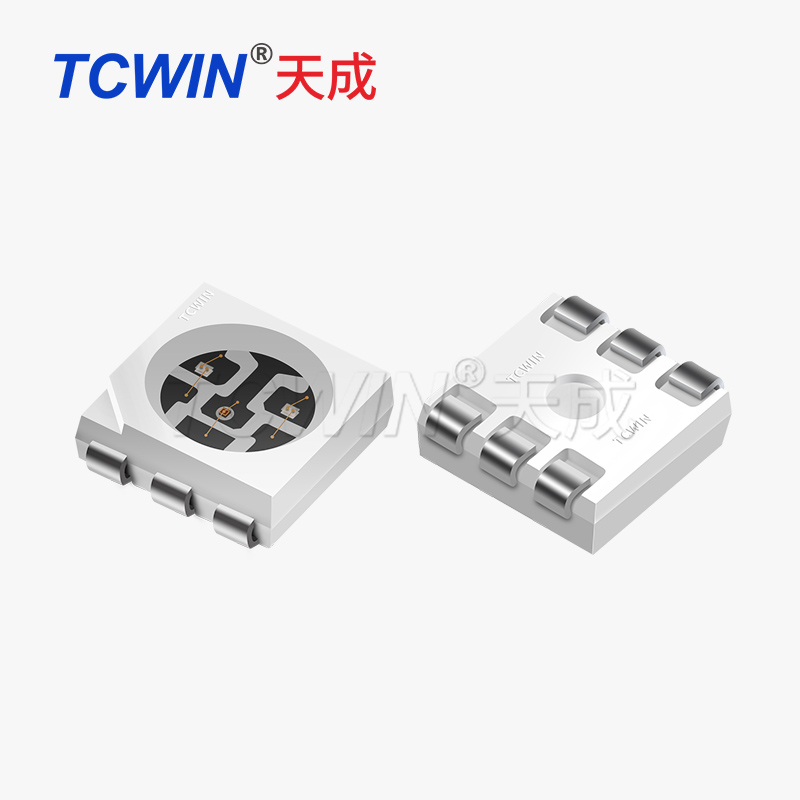

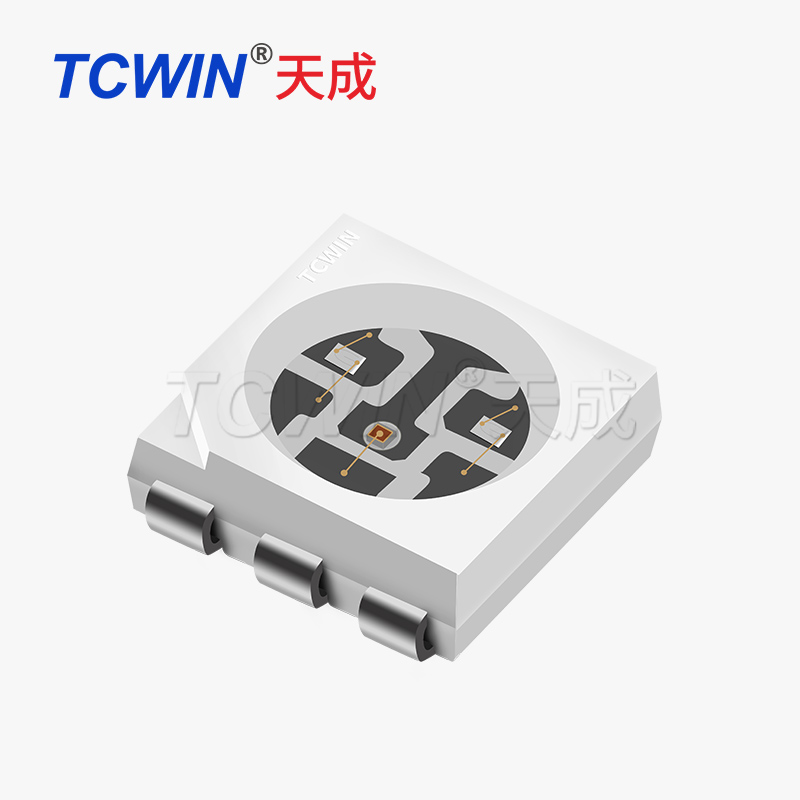

5050 RGB Smd Led Black Bracket

상품명

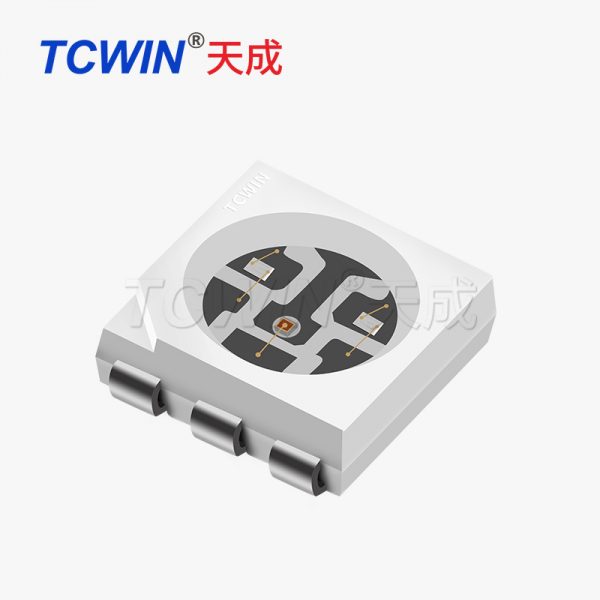

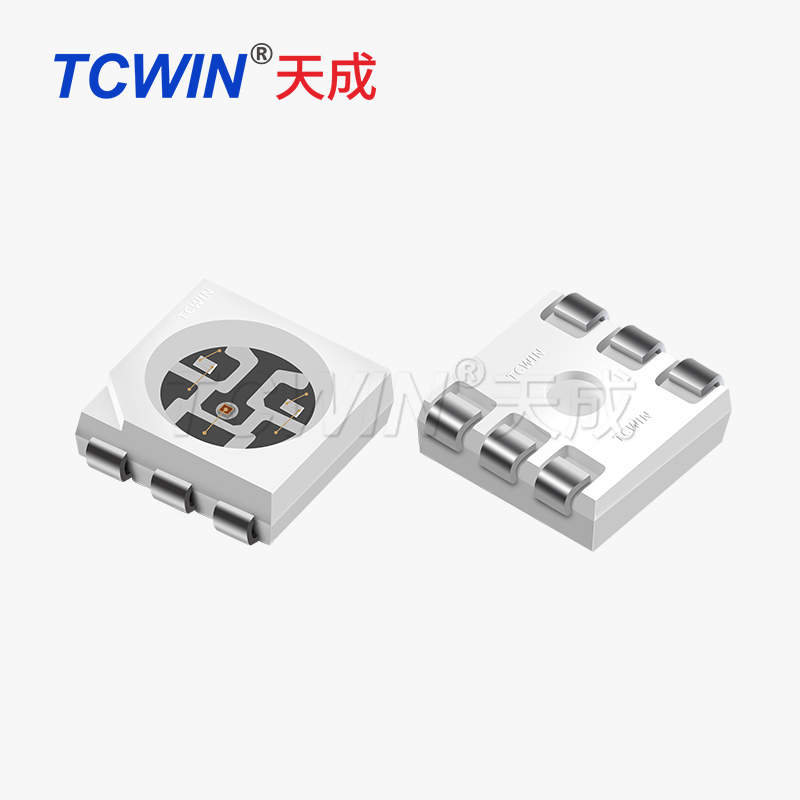

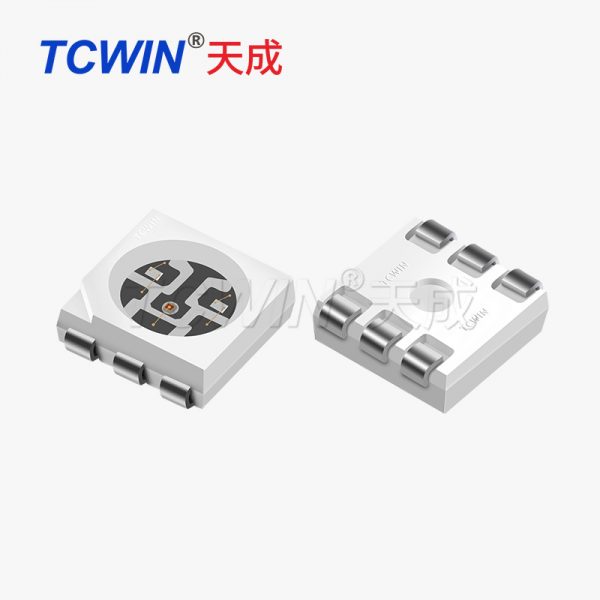

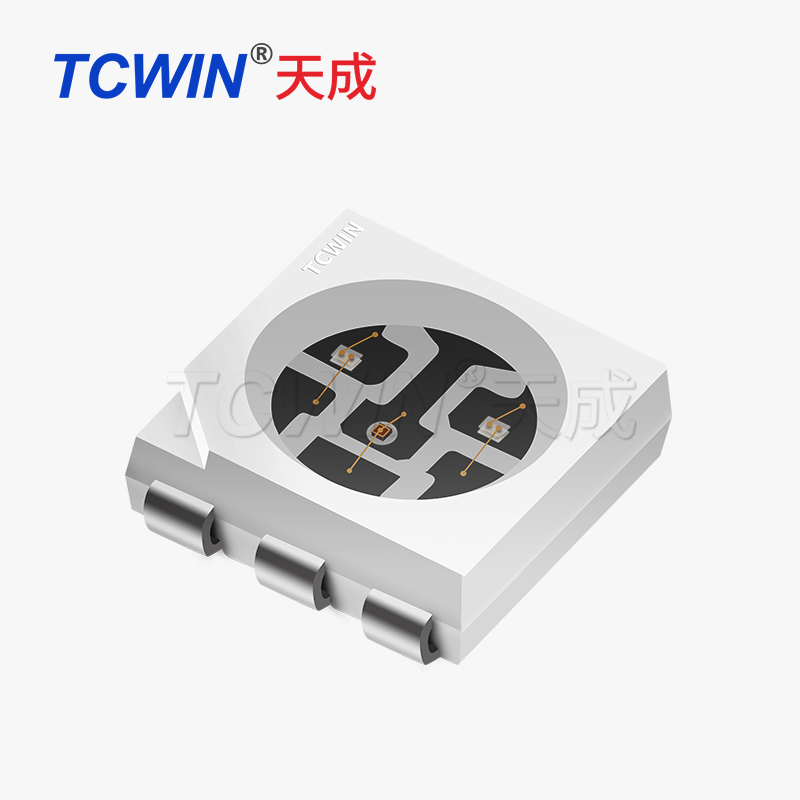

Sanan 칩 TC5050RGBF05-3CSA로지도되는 5050 RGB smd
제품 기능
3 개의 RGB 칩 패키지, 단일 칩 20mA 작동. 요구 사항에 따라 다른 핀 위치를 사용자 지정할 수 있습니다.
신청
LED 라인 라이트, LED 울타리 튜브, LED 포인트 라이트, LED 모듈, LED 스트립, LED 픽셀 화면.
인증
UN EN 62471, SGS, ROHS, 내 습성 등급 MSL2a

Quick Details
Type:
SMD LED
Warranty(Year):
3-YEAR
Lighting solutions service:
Lighting and circuitry design, Onsite metering, Project Installation, LED Strip
Chip Material:
InGaN
Emitting Color:
RGB
Luminous Intensity:
R:600-800MCD G:1800-2200MCD B:500-700MCD
Luminous Flux(lm):
RGB
Optical Attenuation(%):
2
Power:
0.2w
Power Dissipation:
2
Viewing Angle(°):
120
Color Rendering Index(Ra):
80
Color Temperature:
RGB
Operating Temperature(℃):
-40 - 150
Storage Temperature(℃):
5 - 30
Place of Origin:
Guangdong, China
Brand Name:
TCWIN
Certification:
CE, RoHS
Product name:
5050 RGB
Keywords:
RGB SMD LED
package Size:
5.0*5.0*1.5mm
Chip Brand:
Sanan Chip
Emitting Colors:
RGB Red Green Blue
Lifespan:
50000H-100000H
Voltage:
R:2.0-2.2V / G:3.0-3.2V / B:3.0-3.2V
Current:
60ma
Application:
line light, fence tube, point light, LED module, LED strip
