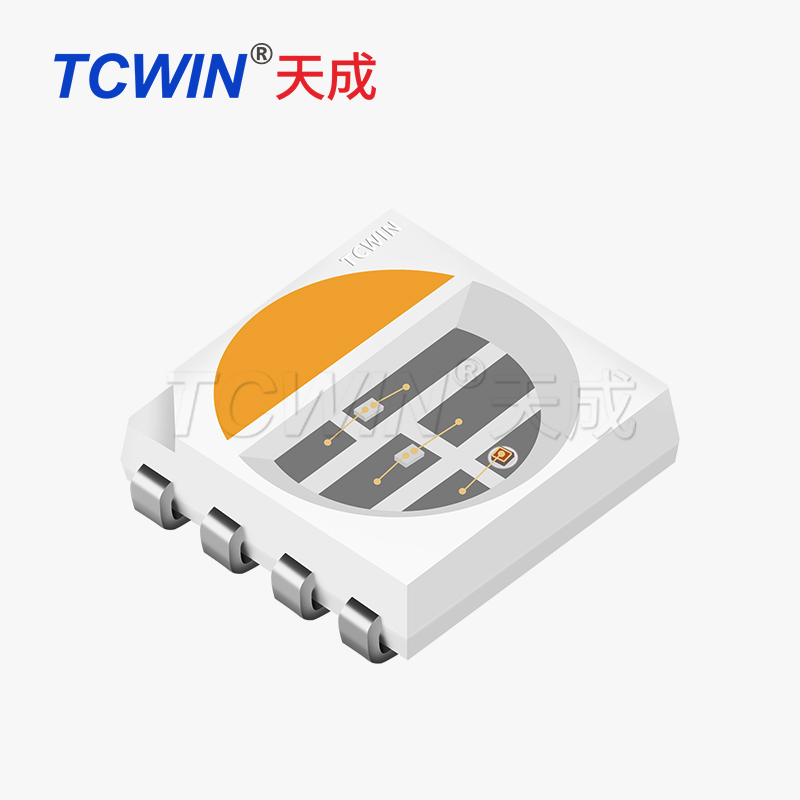

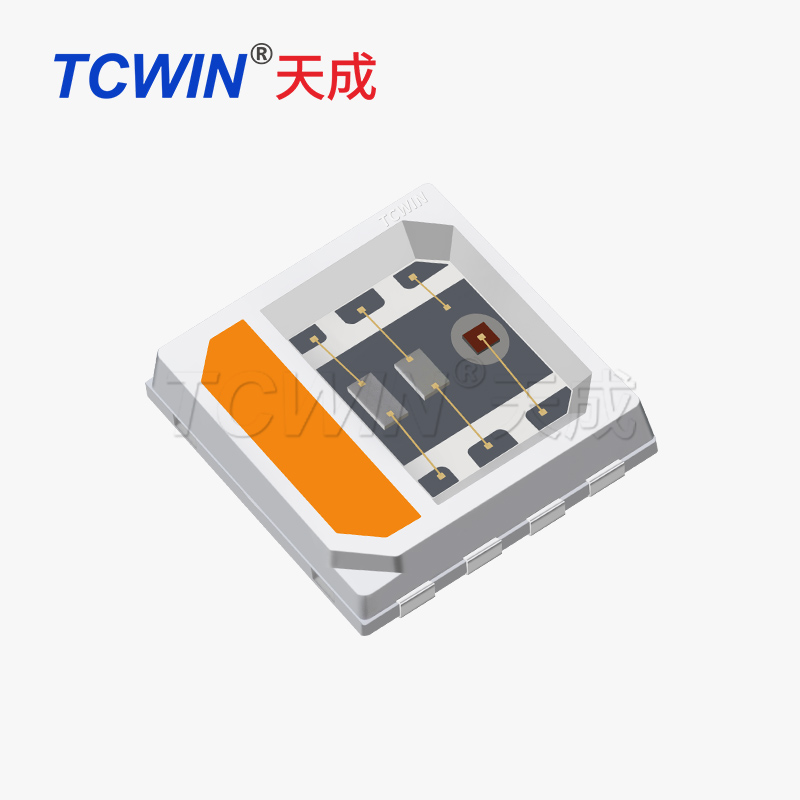

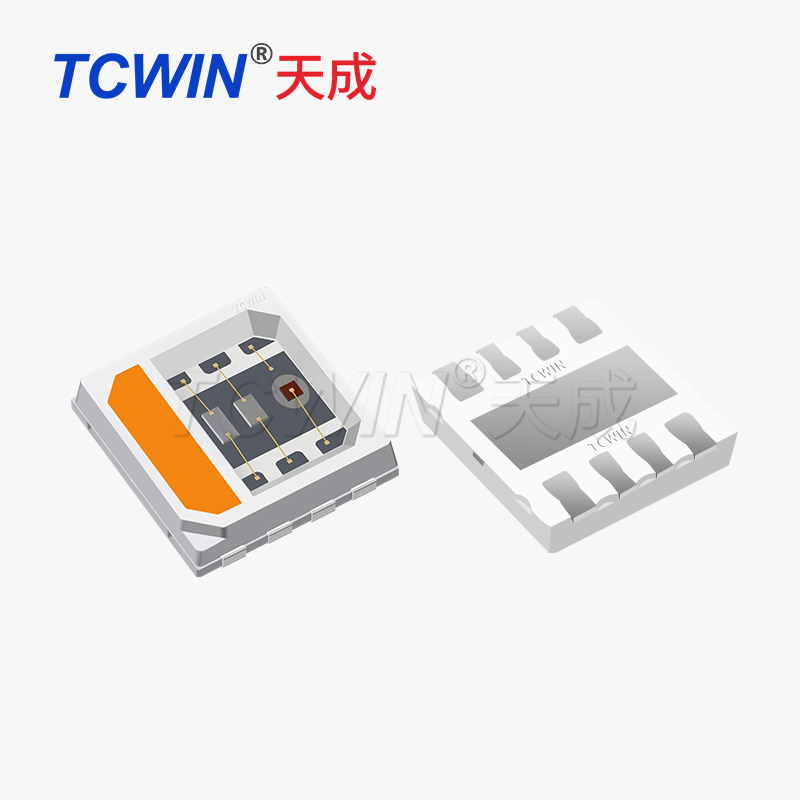

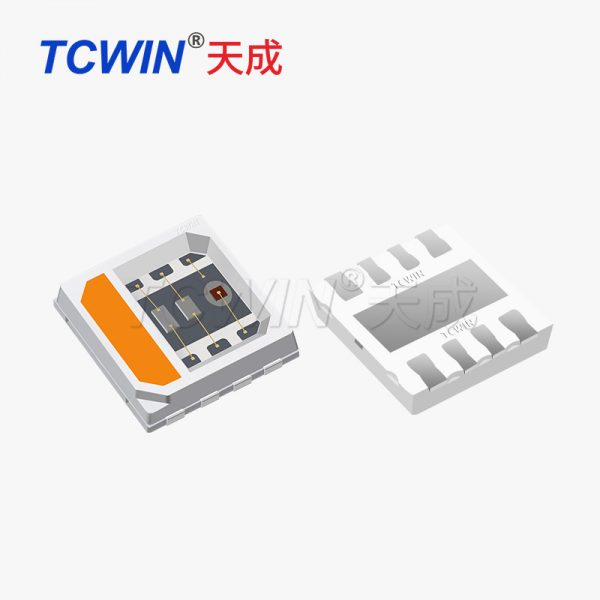

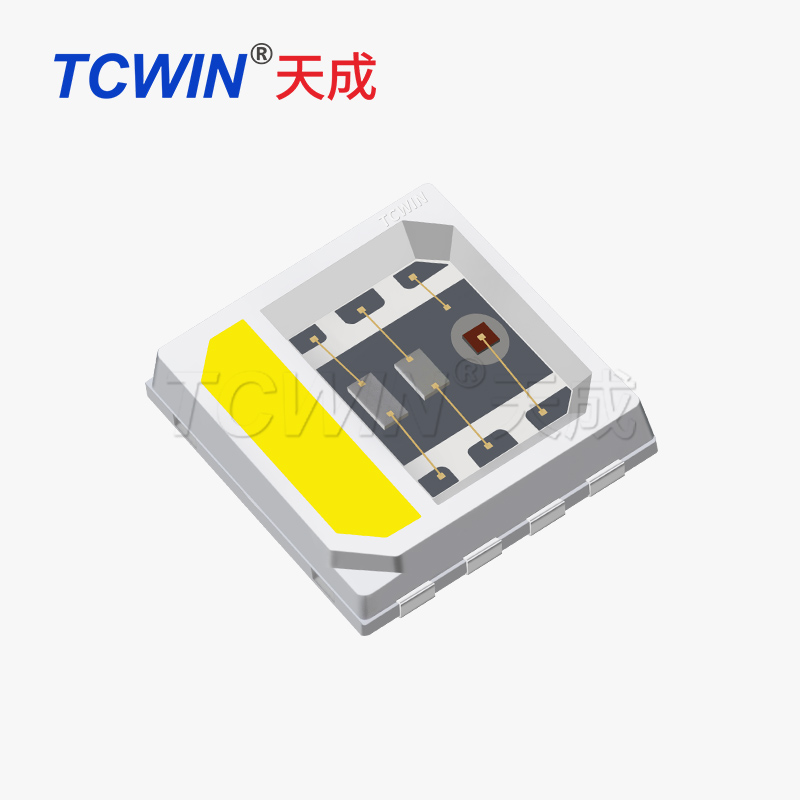

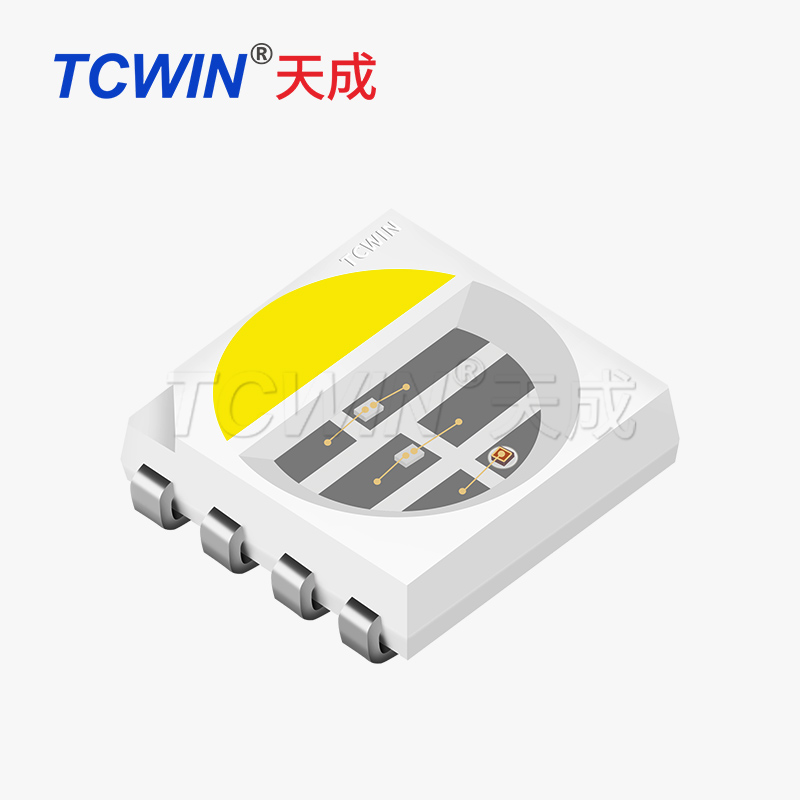

5050 RGBW Smd Led 0.8w

상품명
5050 4 칩 0.3w RGBW, RGB + 순수한 흰색
제품 기능
화이트 칩 패키지 4 개, 단일 칩 60mA 작동. 요구 사항에 따라 다른 핀 위치를 사용자 지정할 수 있습니다.
신청
LED 라인 라이트, LED 울타리 튜브, LED 포인트 라이트, LED 모듈, LED 스트립, LED 픽셀 스크린, 무대 조명, 홍수 조명, 수중 조명, 실외 조명 프로젝트
인증
UN EN 62471, SGS, ROHS, 내 습성 등급 MSL2a

Quick Details
Type: SMD LED
Warranty(Year): 3-YEAR
Lighting solutions service: Lighting and circuitry design, auto CAD layout, Project Installation, LED Strip
Chip Material: InGaN
Emitting Color: RGBW
Luminous Intensity: R: 2000~2500mcd G: 4000~5000mcd B: 1300~1800mcd
Luminous Flux(lm): white: 6-7lm
Optical Attenuation(%): 2
Power: 0.3w
Power Dissipation: 2
Viewing Angle(°): 120
Color Rendering Index(Ra): 80
Color Temperature: 6000 -- 6500k
Operating Temperature(℃): -40 - 85
Storage Temperature(℃): -40 - 100
Place of Origin: Guangdong, China
Brand Name: TCWIN
Certification: CE, RoHS
Package Size: 5.0*5.0*1.2mm
Chip Brand: epistar Chip ( 4 chip)
Lifespan: 50000H-100000H
Voltage: 2.8~3.2V
Current: 20ma
Application: stage light , flood light, spot light , underwater light ,led strip
